CRBH30025A Cross Roller Bearing
CRBH30025A CRBHV cross roller bearing: bore 300 mm, outer diameter 360 mm, width 25 mm. Dynamic load C 112 000 N; static load C0 245 000 N. View dimensions, specifications and quote support.
Ask for price, lead time and equivalent bearing options.

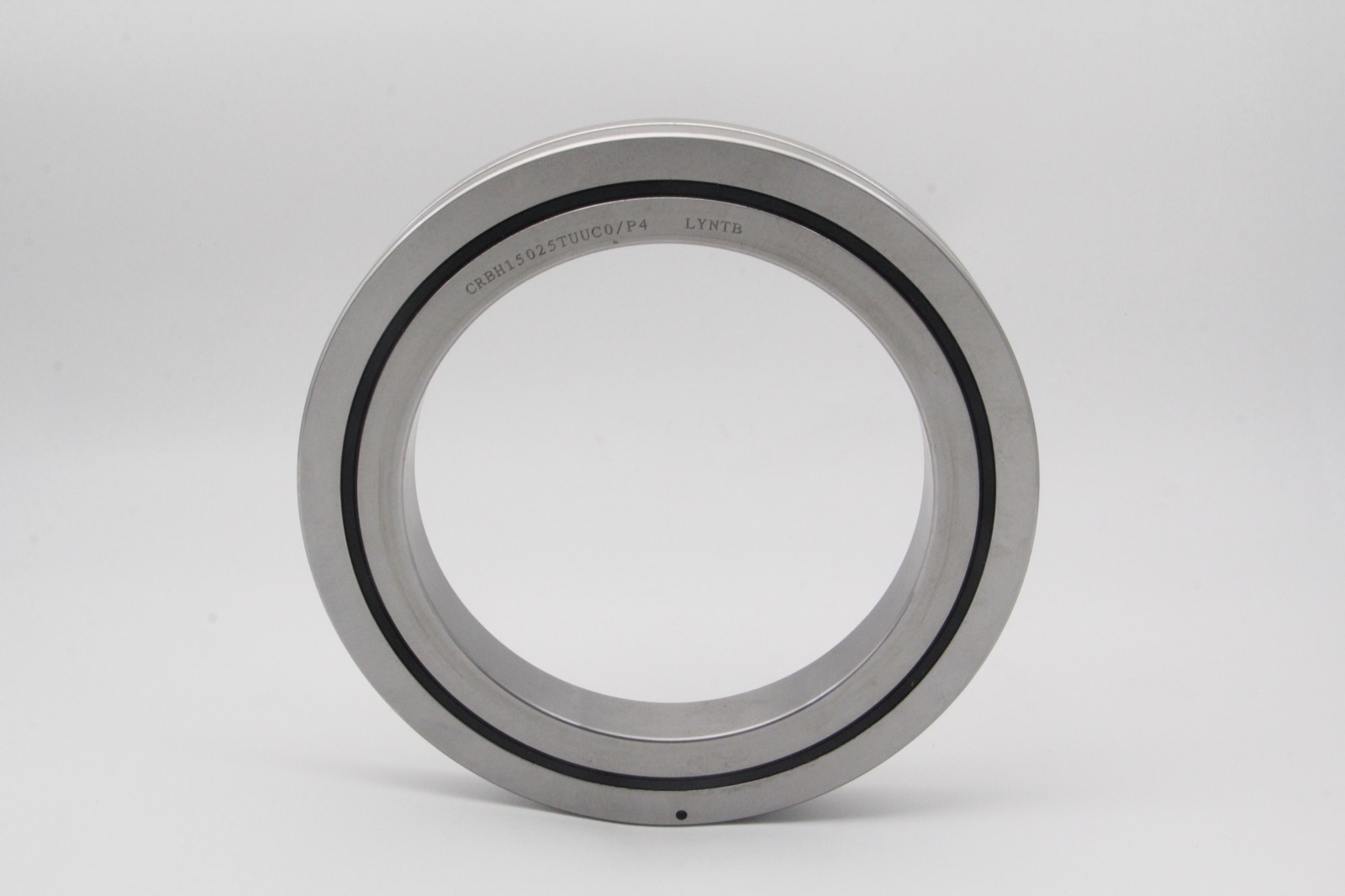

IKO Replacement Cross Roller Bearing Reference Image
Real photo of an IKO replacement cross roller bearing for quick visual confirmation.
Product Introduction
CRBH30025A is a CRBHV series cross roller bearing for compact rotary structures that need combined radial, axial and moment load capacity.
Key size: bore 300 mm, outer diameter 360 mm, width 25 mm.
Suitable for robot joints, rotary tables, indexing mechanisms, inspection equipment and precision reducers.
Before ordering, confirm installation space, accuracy grade, clearance, preload and working load direction.

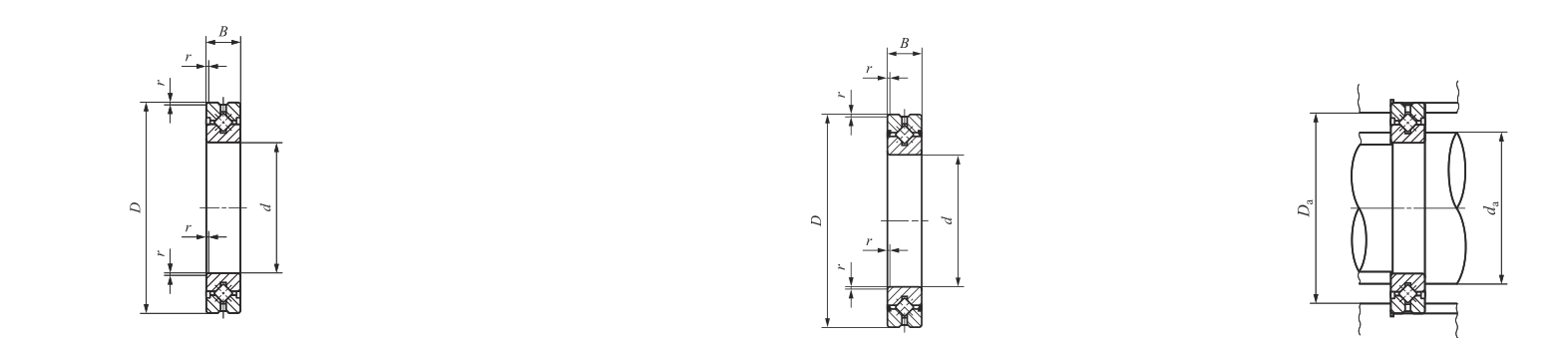

Dimension Drawing
Key dimensions are marked on the drawing for quick model checking.
d=300 mmD=360 mmB=25 mmds=312 mmDh=348 mm
Specifications
| Brand | IKO Replacement Cross Roller Bearings |
|---|---|
| Series | CRBHV |
| Model | CRBH30025A |
| Bore diameter | 300 mm |
| Outer diameter | 360 mm |
| Width | 25 mm |
| Dynamic load rating C | 112 000 N |
| Static load rating C0 | 245 000 N |
| Shaft shoulder ds | 312 mm |
| Housing shoulder Dh | 348 mm |
| Mass | 5.29 kg |
| Feature | IKO high-rigidity V type |
Technical Confirmation for CRBH30025A
Ask for price, lead time and equivalent bearing options. →Key dimensions
d 300 mm · D 360 mm · B 25 mm
Shoulder reference
ds 312 mm · Dh 348 mm
Structure and mounting
IKO high-rigidity V type
Send model, quantity and drawing for a quote and technical confirmation.
Application and Selection Notes
CRBH30025A is a CRBHV series cross roller bearing. It is typically reviewed when compact structure, high rigidity and stable rotational accuracy are required.
Check the mounting space against bore 300 mm, outer diameter 360 mm and width 25 mm. Confirm shoulder dimensions before final housing design.
For load review, compare dynamic load rating 112 000 N and static load rating 245 000 N with the actual radial, axial and moment load conditions.
Series type：IKO high-rigidity V type
Before Requesting a Quote
Target model or equivalent model
Quantity and expected delivery time
Accuracy, clearance and sealing requirements
Drawing, application or working load if available
Common Questions
What type of bearing is CRBH30025A?
CRBH30025A is a CRBHV series cross roller bearing for combined radial, axial and moment loads.
Can CRBH30025A be replaced with another brand?
Yes. Provide the original part number, drawing or key dimensions so fit, bearing type and accuracy can be checked.
What are the load ratings of CRBH30025A?
The dynamic load rating is 112 000 N and the static load rating is 245 000 N. Final selection must consider the actual load direction and duty cycle.
What should be checked before ordering CRBH30025A?
Confirm bore, outer diameter, width, bearing type, accuracy, clearance, preload and installation method before ordering this Cross Roller Bearing.
